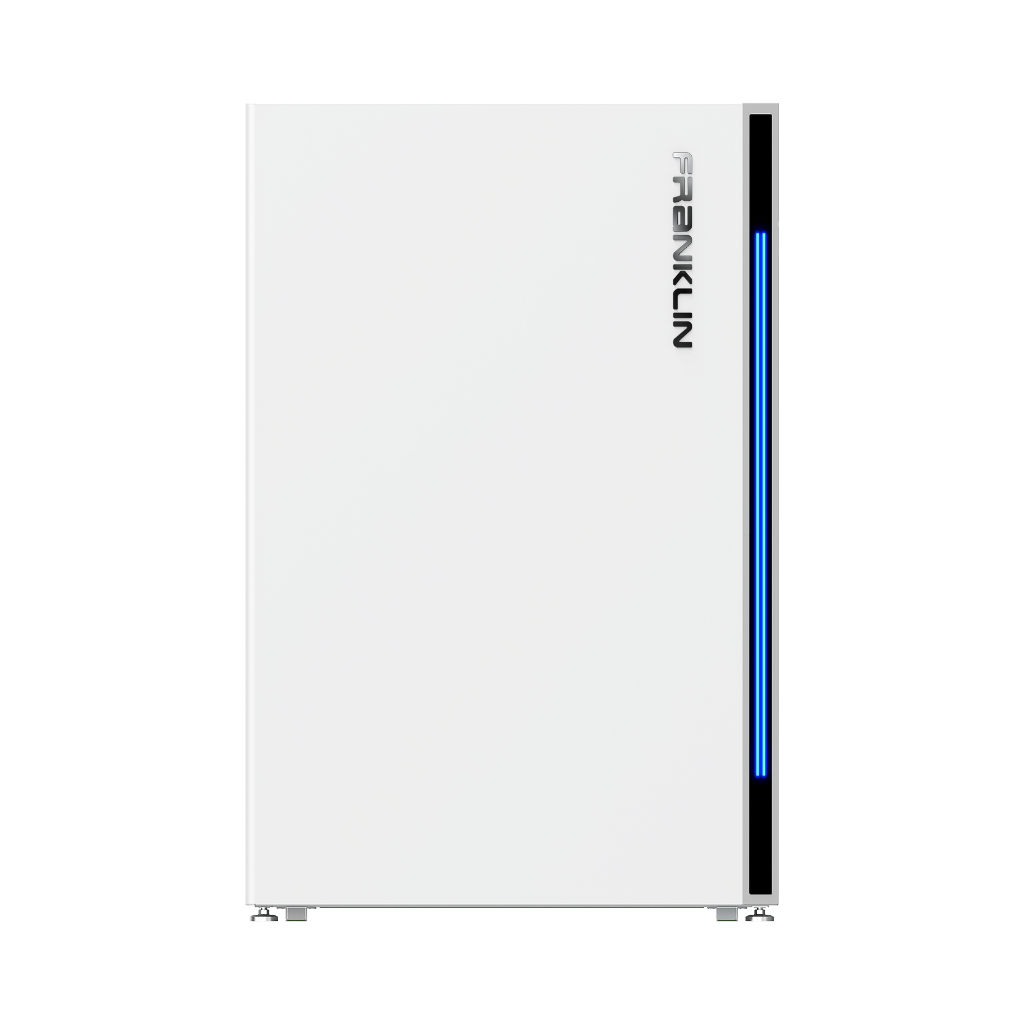

FranklinWH - aPower 13.6kWh/5kW AC Coupled Battery
The Franklin Home Power (FHP) system goes beyond just providing safe and reliable backup power. It optimizes daily household energy management, offering complete home energy independence. The key components of FHP are the aPower battery (SKU: aPower X-01-AU), the aGate intelligent controller, and the FranklinWH App.
Robust: 12-year warranty ensures long-term reliability.
Versatile: Compatible with generators and off-grid setups, with black start support.
Safe: Features an IP67-rated LFP battery for enhanced safety.
Scalable: Expandable up to 15 units, or 204kwH.
Reliable: Provides UPS-level backup with multiple ports.
AC-coupled: All AC connections, compatible with both micro and string inverters.
Performance:
Energy capacity: 13.6kWh
5kW continuous power /10kW peak power (10s)
100% depth of discharge
89% round trip efficiency
Mechanical:
Dimension (H x W x D):1150 x 750 x 290mm
Weight: 185kg
Installation: indoor or outdoor / wall mount or floor mount
Environmental:
Max. 4000m of altitude
Operating temperature: -20°C to 50°C
Ingress rating: IP67 (Battery and power converter system) & IP56 (Wiring compartment)
Certifications:
IEC / EN62109-1, IEC / EN62109-2, UL1973, IEC / EN62477-1, AS/NZS 4777.2:2020, IEC62040-1, IEC / EN62619

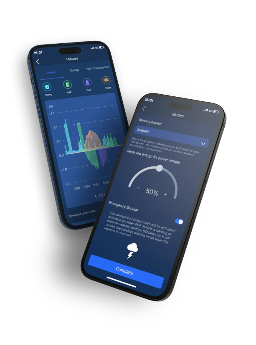

FranklinWH App
Whole Home Energy Control at your fingertips.
Quick app-based commissioning and remote diagnostics
Easy to use, real time visibility and control for all your whole home's energy
Get it on Google Play, or available on the AppStore
